High Efficient DC Powered Air Conditioner DC48V 300W Cabinet Air Conditioner

  • 1
  • 2
  • 3

Brand Name : ESTEL

Model Number : DC03HDNC1A

Certification : ISO9001, CE, RoHs

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 2000 pcs/month

Delivery Time : 3 weeks

Packaging Details : Wooden case

Type : Cabinet Air Conditioner

Mounting : Door mount

Operating voltage : DC48V

Application : Outdoor Cabinet

Weight : 7kg

Refrigerant : R134a

Dimension(hl*w*d) : 348×150×200

Contact Now

High Efficient DC Powered Air Conditioner DC48V 300W Cabinet Air Conditioner



Envicool DC Series Air Conditioner
Envicool is a professional thermal control solutions provider for outdoor cabinets.
Envicool has accumulated rich technological experience and lots of application in this field.

The DC series air conditioner is the result of Envicool technology applied in DC powered outdoor cabinet.
The cooling range is 300W~ 5000W.

High Efficient DC Powered Air Conditioner DC48V 300W is a compact air conditioner.
The design is optimized for applications with limited space available, but
where functionality and performance still cannot be compromised.

  • -48VDC power input
  • 300W cooling capacity@L35/L35
  • Anti-cover design
  • Door mounted – easy integration in outdoor cabinets
  • Standard configuration with heater
  • Wide working temperature range: -40ºC to +55 ºC w/ heater

High Efficient DC Powered Air Conditioner DC48V 300W BENEFITS

  • Compatible size with TEC (Peltier cooling)
  • Suitable for 1~2 banks battery chamber
  • Energy saving
  • Lifetime >10 years – minimum maintenance
  • Environmental friendly – R134a and RoHS compliant
  • IP55 and corrosion Proof
  • Dedicated design by delay start
  • RS485 for remote control

High Efficient DC Powered Air Conditioner DC48V 300W APPLICATIONS

  • Battery Cabinet
  • Equipment Cabinet
  • Telecom Cabinet
  • Optical Cabinet

High Efficient DC Powered Air Conditioner DC48V 300W Data Sheet

Parameter Model DC03HDNC1A
Dimensions,Weight &Mount
External Dimensions (H x Wx D) mm 348×150×200
External Dimensions (Hx Wx D)With Flange mm 400×181×200
Weight kg 7.0
Mounting Method   Door Mounted
Application   Outdoor
Environmental Protection &Performance
Working Temperature Range ℃ -40 to +55
Noise Level dB(A) 60
IP Protection Level   IP 55
Refrigerant   R134a
RoHS Compliant   Yes
Cooling/Heating Capacity
Cooling Capacity@L35/L35 W 300
Heating Capacity W 300
Power Consumption
Power Consumption@L35/L35 W 120
Current@L35/L35 A 2.50
Airflow
Internal Airflow m3/h 100
Power Supply
Power Supply Range VDC -44~-58
Rated operating voltage -Controller VDC -48
Rated operating voltage -Cooling/Heating System VDC -48
Max.Current A 5.0

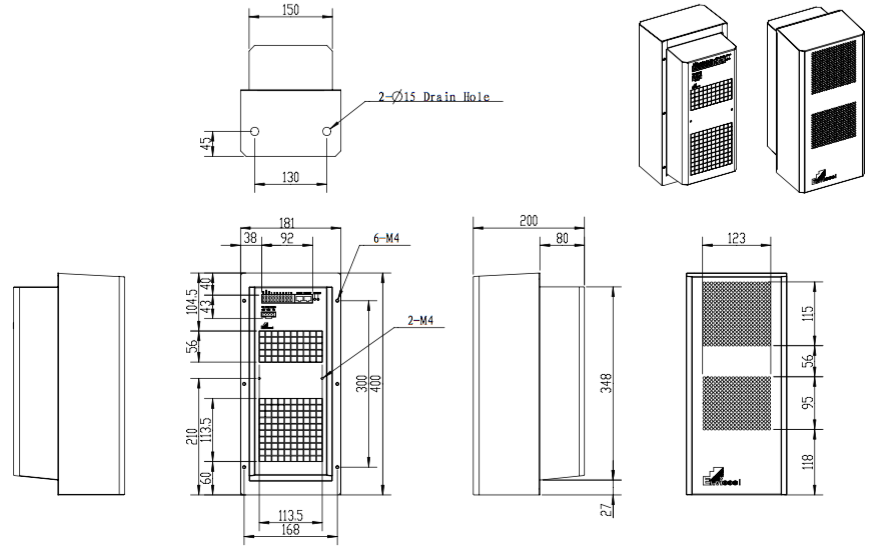

Dimension

High Efficient DC Powered Air Conditioner DC48V 300W Cabinet Air Conditioner
