Galvanized Steel Outdoor Telecom Enclosure AC220V 50Hz 2000W Air Conditioner
1. Weatherproof Telecom Cabinet
The cabinet is designed to house a variety of equipment, they provide protection from vandalism, dust, rain, snow and dripping water. the cabinet is made by welding,ensuring the whole cabinet is strong and durable. Air conditioner or fans is installed on cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of battery. It provide a secure thermally managed environment for backup battery systems for telecommunications and cable applications.
2. Weatherproof Telecom Cabinet Features
- Material: SPCC,stainless steel,galvanized steel or as customer's requirements
- Cooling System: Air conditioner(Fans,or Heat exchange)
- Protection Level: IP55 ,Waterproof,dust proof.
- Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection
- Machine Protection Solution: the cabinet is designed specifically to protect it from human damage, earthquake and other damages.
- Cabinet design allows natural wind cooling through filtered vents on front door and venting under lip of rain hood
- Support custom-made.
- All the cables used in the cabinet are made from flame-retardant materials. Access control, smoke, water immersion, temperature, humidity, and other comprehensive protection.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 900×900×2300mm |
| Layout | 1 compartment |
| Equipment Installation Method | 19” rack |
| Door | With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock). |
| Material | Galvanized steel, double wall with insulation |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | air conditioner and fans |
| Lighting | LED lamp | 48V LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| | | Storage Temperature: -50°C ~ + 70°C |
| | | Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC | (1)External Dimension: W×D×H 900×900×2300mm (2) One compartment (3) With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock). (4) Galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls. |
| 2 | Air Conditioner | 2 | PC | Cooling capacity: 2000W. Power Supply: AC220V, 50Hz. One installed on front door, the other on back door. |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | DC48V |
| 4 | LED Lamp | 2 | PC | DC48V |
| 5 | LED Lamp Switch | 2 | PC | One for controlling LED lamp on/off |
| 6 | Power Distribution Unit | 1 | PC | Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 50Hz |
| 7 | Package | 1 | PC | Wooden Case |
5. Cabinet Structure
(1) External Dimension W×D×H 900×900×2300mm
(2) One compartment;
(3) totally two doors; with special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

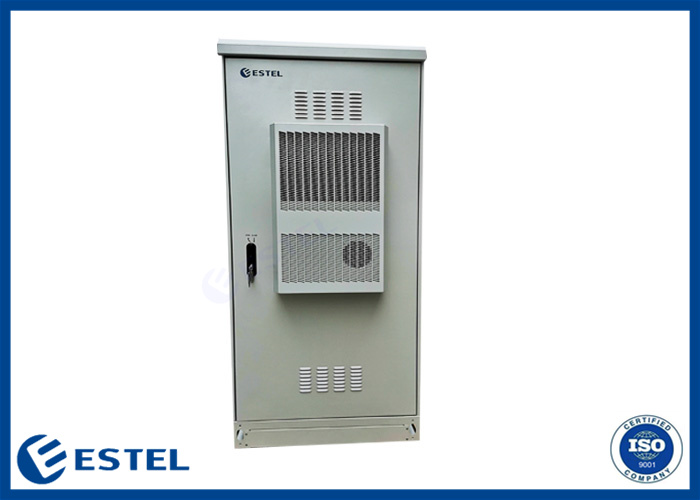

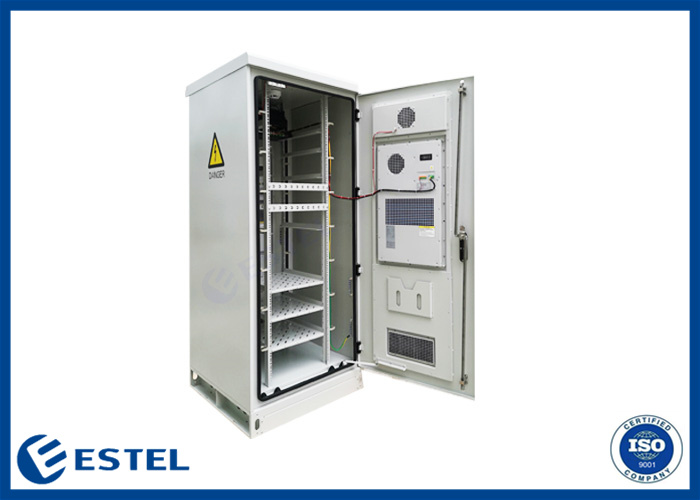

6. Cabinet Pictures
7. LED Lamp And Door Sensor
LED lamp and door sensor are installed at the top of the cabinet.
8. Weatherproof Outdoor Telecom Cabinet Application Area
· Satellite Communication
· Wireless Backhaul
· Cable Television
· Navigation & Positioning
· Military Installation
· Port Security

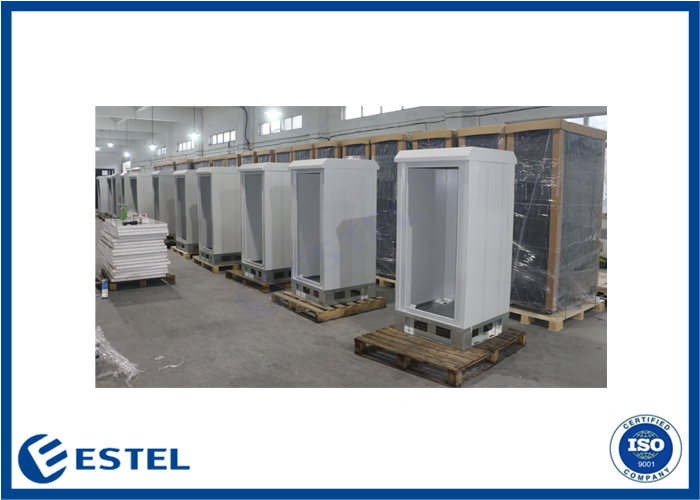

9. Production Picture
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
