IP55 Electrical Cabinet Air Conditioner

Name: IP55 Electrical Cabinet Air Conditioner
Brand: ESTEL
Price: 1 USD

Buy cheap IP55 Electrical Cabinet Air Conditioner product

Brand Name : ESTEL

Model Number : E512020500

Certification : ISO, CE, ROHS

Place of Origin : China

MOQ : 1 Set

Price : Depending on order quantity

Payment Terms : L/C, T/T, Paypal

Supply Ability : 1000 sets per month

Delivery Time : 15- 20 days

Packaging Details : Wooden case with pallet

Installation method : Installed inside kiosk enclosure

IP grade : IP55

Outside dimension (W * H * D) : 403*420*160.5mm

Cooling capacity(L35/L35) : 500W

Heat capacity(optional) : 300W

Input voltage range : 220VAC~60Hz

Contact Now

IP55 Outdoor Kiosk Air Conditioner

With Cooling Capacity 500W

Input Power 220VAC 60Hz

Model: E512020500

Introduction

The outdoor kiosk air conditioner is designed for cooling outdoor electronic information kiosks. The size of the air conditioner can be customized to fit your kiosk’s needs.

The electronics and computers used in the kiosks required a constant temperature in hot climates and under adverse weather conditions in order to function properly. They were stand-alone machines with no daily on-site maintenance personnel, so the kiosk air conditioner we developed is maintenance free.

Features

(1) High adaptability

(2) High precision

(3) High reliability

(4) Low noise

(5) Low energy consumption

(6) With dry contact alarm output

(7) RS485 communication port

Technical Specifications

Item	Unit	Parameter
Application	Outdoor Kiosk
Installation method	Installed inside kiosk enclosure
IP grade	IP55
Refrigerant	R134a
ROHS certification	yes
Working environment temperature	⁰C	-20 to +55
Noise	dB(A)	65
Input voltage range	220VAC~60Hz (185V~264V)
Cooling capacity	W	500W(L35 L35) 350W(L25 L35)
Rated input power	W	220W(L35 L35) 176W(L25 L35)
Rated current	A	1.0A(L35 L35) 0.8A(L25 L35)
Heat capacity(optional)	W	300W

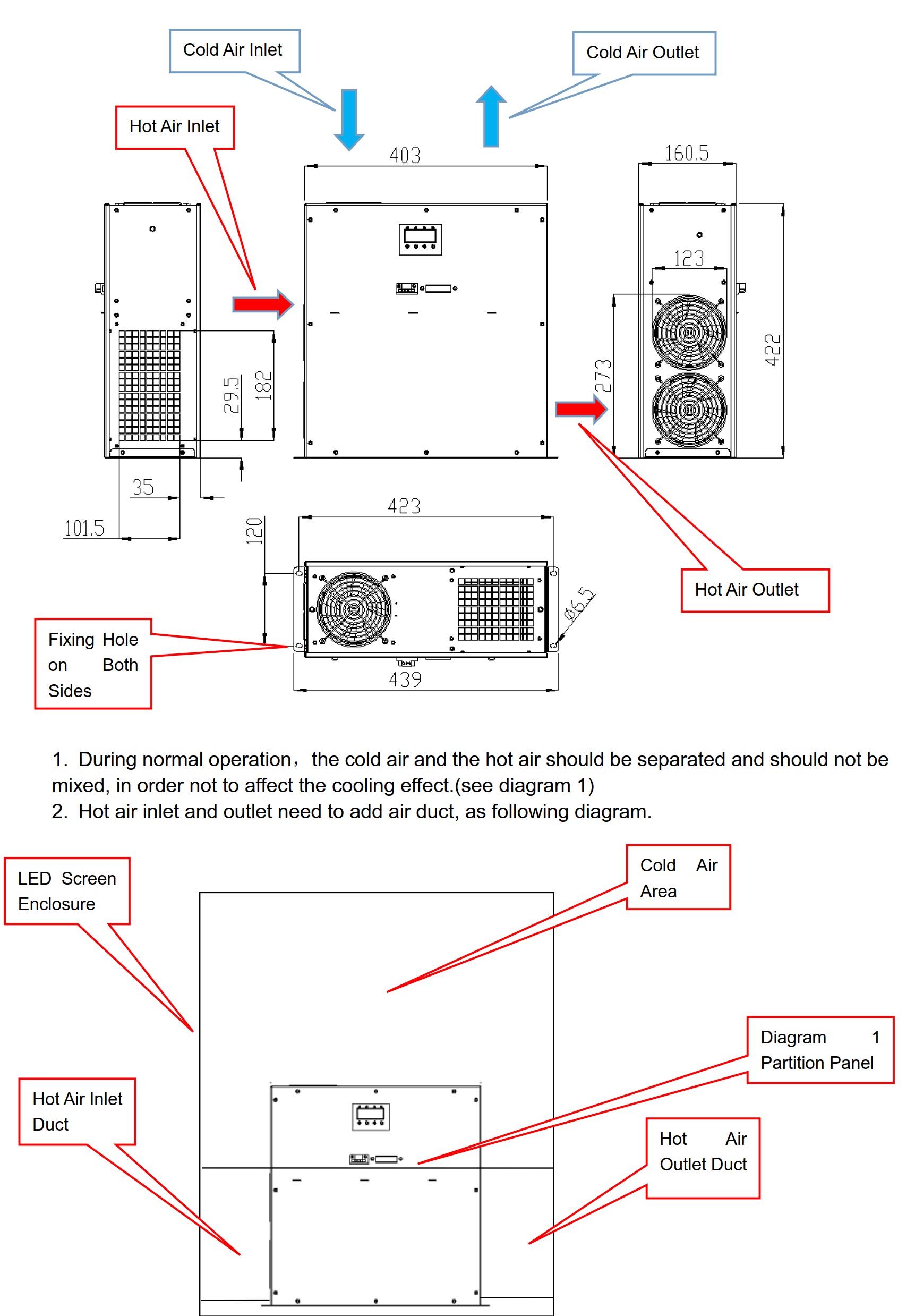

Outside dimension (W * H * D)	mm	403420160.5

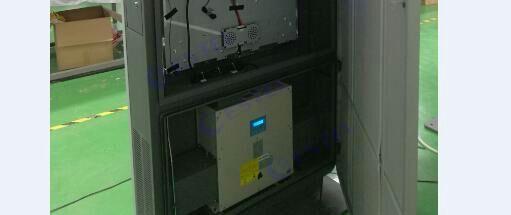

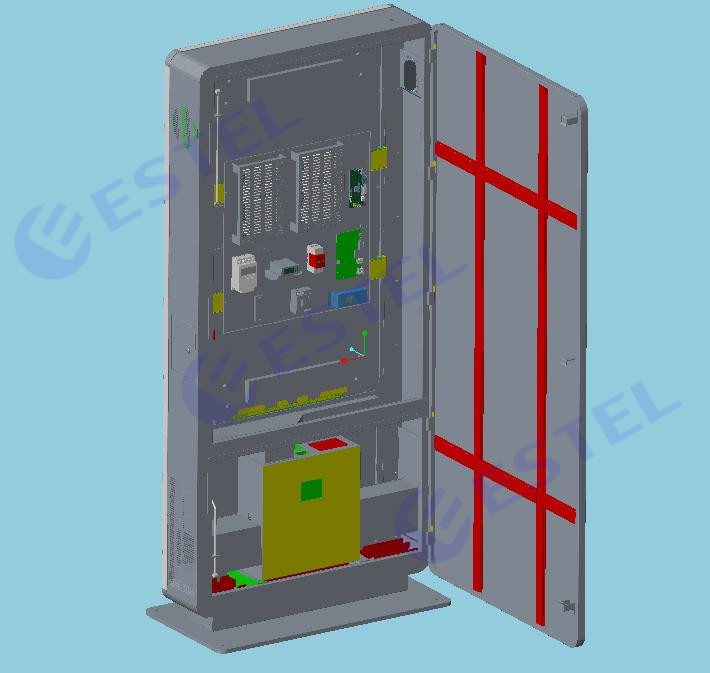

Air Conditioner Installation Into Kiosk

Product Tags:

220VAC Electrical Cabinet Air Conditioner

IP55 Electrical Cabinet Air Conditioner

IP55 small cabinet air conditioner

IP55 Electrical Cabinet Air Conditioner Images
