42U Front Back Access Fan Cooling Outdoor Telecom Enclosure Communication Cabinet With Castor Unique Key
Summary
This outdoor communication cabinet is made of metal material, and does not allow unauthorized operators to access. Communication equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
The cabinet is mainly used in IDC data room, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
Features
● Simple structure, convenient operation and installation, exquisite workmanship, precise size, economical and practical.
● High integration, compact structure, easy installation and migration on later stage.
● High-performance cooling solution.
● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device, each lock has unique key.
● Professional anti- corrosion powder coating.
● support both caster and support foot.
Technics
The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.
Specification
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET60100205-EQ-2D |
| External Size | W×D×H: 600mm×1000mm×2055mm |
| Component | The whole cabinet is composed of three parts: the top cover, the cabinet body and the castor. The installation method is floor mount |
| Material | Galvanized steel, single wall |
| Structure | - Single wall
- One front door and one rear door, hidden zinc alloy hinge
- Special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device, IP65 protection grade, each lock has unique key
- Door stopper / wind lock is installed on the inside of the cabinet door
- Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof
- Include standard 19“ rack inside the cabinet, high universality
- Including 2 equipment trays
- Equipped with cable manager
- Cable inlets at the bottom of cabinet
- Including castor wheel and adjustable feet.
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification |
| Color | Polyester anti-corrosion powder coating light grey RAL 7035 |
| Ingress Protection | IP55 |
| Working Temperature | -40°C～+75°C |
| Cooling Method | Air conditioner | Optional |
| Heat exchanger | Optional |
| Fan | AC220V, 4 pcs, include one temperature controller |

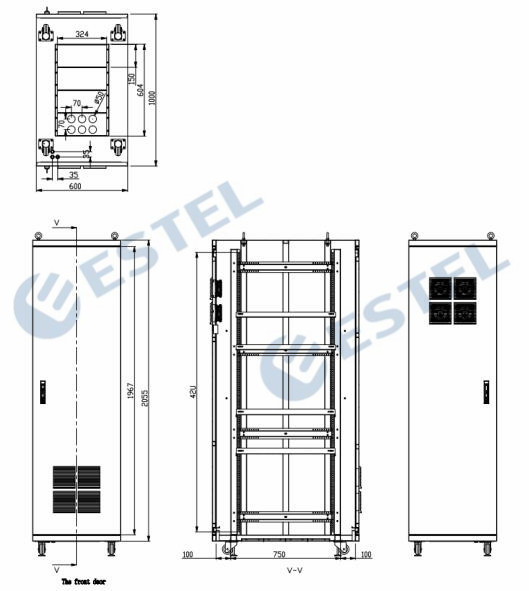

2D Drawing

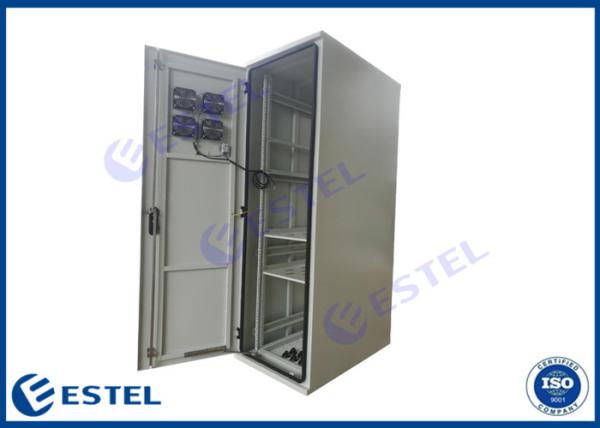

Cabinet Pictures
40 Feet Container Loading
